Deployable Panel

Overview

A couple of curved tape spring concept are adopted for the design of a reliable hingemechanism implemented for the opening of a satellite cover.


The simplicity of this concept ensures a full deployment of the panel and enaught structural rigidity to avoid any interference with the satellite attitude control.


The opening mechanism consists on a hold down and burn wire system integrated with the panel.​​

Application

  • Double tape spring hinge connection

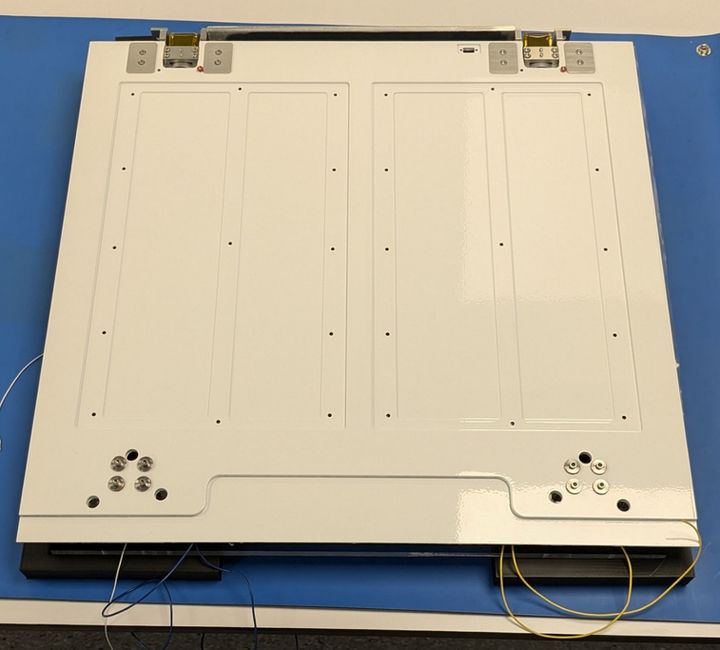

  • Deployable 0.5 m side length CFRP satellite cover panel

  • Activated via hold down and burn wire mechanism

  • Reliable and repeatable tape spring hinge concept
